Power take off on utility tractors have become a primary source for much of the work around farms, orchards, golf courses, etc. Any place where you need to turn a pile of branches into a pile of chips.
You choose - self feed or hydrostatic hydraulic feed for infinite feed settings - these chippers mount on your three point hitch and hook directly to the PTO for quick setup and power on demand.
Rotating 360 degrees, the 8 inch round discharge chute gives you accurate control over the flow of chips produced. The 30 x 1 inch thick, 275 pound dynamically-balanced disc, adjustable 4-sided anvil, four reversible chipper blades. The feed roller on Model CH9540H is 15 inches in diameter, containing 10 knife blades for enhanced powerful feeding. A hydraulic jack is mounted on the hydraulic feed system for ease of maintenance. Plate steel construction means solid performance for hundreds of hours, and maintenance is enhanced by a hinged disc cover that provides wide open access to the chipper blades and disc.
(*NOTE - For Use On Tractors with PTO Horsepower Ratings From 35 hp to 60 hp)

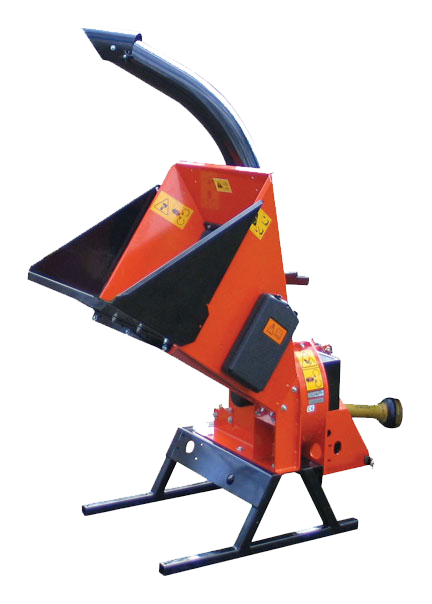

MODEL | CH8540 |
---|---|
Chipper Capacity | Up to 8" |
Power Source | Cat. 1, 3-Point Hitch, PTO, 540 rpm |
Input Power Range (hp) | 35-60 |
Drive | Triple Banded |
Chipper Disc (cm) | 76.2 x3.2 - 275 turns at 1500 rpm |
Dimensions (cm) (LxWxH) | 132.1 x 119.4 x 236.2 |
Chipper Blades | 4 reversible blades with 4 sided adjustable anvil |
Feed System | Gravity/Self Feed |
Feed Sensor | N/A |
Hopper Size (cm) | 77.5 x 78.7 |
Shredder Opening (cm) | N/A |
Weight (kg) | 402 |
Warranty | 2 Year Consumer 1 Year Commercial |
