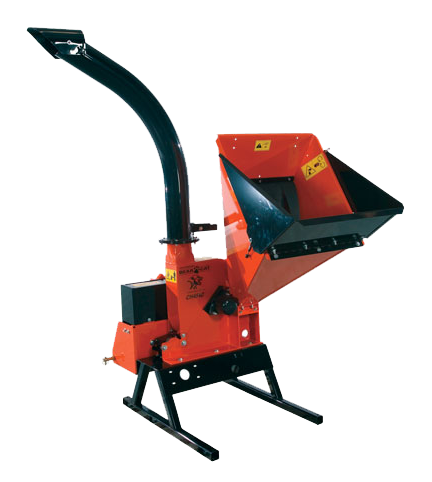

CH5540 5" PTO Chipper


Ready to work!

Overview

When 5 inch PTO chipper is what you need, Bear Cat has just the right machine for you. You choose the model based on your power requirements. If you have a utility tractor with a 540 rpm PTO, one of these is your pick.

Built Bear Cat tough, yet compact in design, the 5 inch chippers will handle your debris recycling problems.

Model CH5540 or hydraulic feed Model CH5540H both come equipped with a 20 x 1.25 inch, 140 pounds dynamically balanced steel disc with four reversible chipper blades, easy feeding with a big 27 inch x 28 inch feed hopper and 5.5 inch x 7 inch chipper opening that defies small side limbs, 360 degree rotating 6 inch discharge chute.

(*NOTE - For Use On Tractors with PTO Horsepower Ratings From 25 hp to 45 hp)

CH5540
MODELCH5540
Chipper Capacity Up to 5"
Power SourceCat. 1, 3-Point Hitch, PTO, 540 rpm
Input Power Range (hp)25-45
DriveTwo Single Banded
Chipper Disc (cm)50.8 x 2.5 - 140 turns at 2000 rpm
Dimensions (cm) (LxWxH)121.9 x 114.3 x 221
Chipper Blades4 reversible blades with 4 sided adjustable anvil
Feed SystemGravity/Self Feed
Feed SensorN/A
Hopper Size (cm)14 x 17.8
Shredder Opening (cm)N/A
Weight (kg)272
Warranty2 Year Consumer
1 Year Commercial
